Tractor Packages/

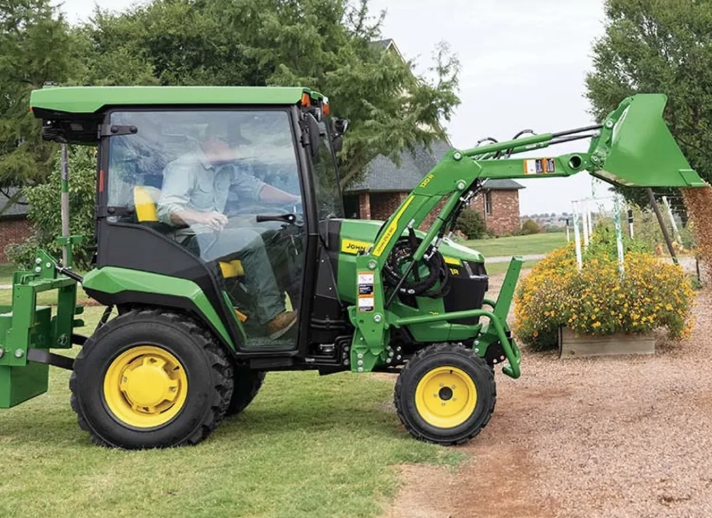

1R 25 Tractor Package
Starting At:
0% APR for 36 months with 20% down, for a monthly payment of $809/mo.
0% APR may be available on longer terms or with lower down payment. Please ask about financing options when requesting a quote.
Pricing does not include sales tax.
Package Includes:
Implements can be adjusted on each package. Browse all tractor implements. Please mention adjustments or questions when requesting a quote.
Engine Make
Yanmar®
Engine Model
3TNV80F-NCJT
Displacement
77 cu in.
Displacement
1.267 L
Rated Engine Power
23 hp: (SAE J1995)
Rated Engine Power
23 PS
Transmission Type
Hydrostatic - two range
Rear Hitch Category (SAE Designation)
Limited Category 1
Pump Rated Output
Steering - 3.5 gpm
Implement - 3.9 gpm
Total - 7.4 gpm (27.9 L/min)
Base Machine Weight
1872 lb.
Machine Configuration
Wheel or Track Configuration
Wheel
Engine
Engine Make
Yanmar®
Engine Model
2TNV80F-NCJT
Emissions Certifications
Final Tier 4
Displacement
77 cu in.
Displacement
1.267 L
Aspiration
Natural
Number of Cylinders
3
Rated Engine Speed
3200 rpm
Rated Engine Speed
23 hp: (SAE J1995)
Rated Engine Speed
23 PS
Bore and Stroke
3.2 x 3.3 in.
Cooling System Type
Water pump
Fuel Type
Diesel
Air Cleaner Type
Dual element with mechanical restriction indicator
Transmission
Transmission Type
Hydrostatic - two range
Clutch
Wet disc
Cruise Control
Standard
Rear Power Take-Off (PTO)
PTO Category
Limited Category 1
Engagement Method
Independent
PTO Clutch
Wet disk
Brake (For Mid and Rear PTO)
Wet disk
Front PTO
PTO Speed
2100
Front Rated PTO Power
18 hp
Rear Hitch
Rear Hitch Category (SAE Designation)
Limited Category 1
Maximum Lift Capacity at 610-mm Behind Hitch Point
915 lb / 415 kg
Sensing Type
Position control
Draft Control Sensing
Position control
Hydraulics
Hydraulic System Type
Open center
Pump Rated Output
Steering - 3.5 gpm
Implement - 3.9 gpm
Total - 7.4gpm (27.9 L/min)
Number of Rear SCVs
Two
Steering & Brakes
Steering Type
Power steering
Primary Brakes
Wet disc
Tires
Front Tires Size
R3 Turf: 23x8.50-12
R3 Radial: 220/55-R12
R4 Industrial: 23x8.50-12
Front Tread Spacing
37 in.
Rear Tires Size
R3 Turf: 12-16.5
R3 Radial: 280/70 R16
R4 Industrial: 12-16.5
Rear Tread Spacing
35 in.
Electrical System
Battery Voltage
12 V
Electrical System Voltage
12 V
Battery Cold Cranking Amps
500 CCA
Alternator Capacity
40 amp
Operator Station
ROPS Type
Foldable
Seat Suspension
Suspension seat
Capacities
Fuel Tank Capacity
5.4 gal.
Dimensions & Weights
Base Machine Weight
1872 lb.
Wheelbase
63.0 in.
Front Axle Ground Clearance
7.7 in.
Offer available on new equipment and in the U.S. only. Prices and savings in U.S. dollars.
Offer valid on qualifying purchases. Subject to approved installment credit with John Deere Financial, some restrictions apply, so see your dealer for complete details and other financing options.
